Portable Earthing Equipment also called Discharge Rod, are safety equipment designed for discharging & grounding of dead equipment. The system is designed for high fault levels so that even during shutdowns, when technicians are on the job, by mistake if the supply is switched ON, the Portable Earthing Equipment saves human life as well as equipment under maintenance. Special Line End & Earth End Clamps along with operating socket and earthing lead are used. The Line End Clamps, Earth End Clamps & operating sockets are made of special aluminium alloys which can withstand high short circuit currents and has very good mechanical strength.

Using Portable Earthing Equipment, clamps are applied from remote just by rotating the insulated operating pole, the operator never comes in contact with any conductor, so it is a highly safe system. Using the common operating pole clamps are applied on each phase one by one. We also supply a single phase system with fixed clamps.

• Main Insulation: ‘F' Class to IS, BS & IEC

For Dimensions of Insulated Rods please refer Specifications of Insulated Sticks at the beginning of the Electrical Safety Equipment Section.

• Fault Level Ratings: 7.5KA, 10.2KA, 21KA, 35KA & 40KA for short duration.

ACCESSORIES

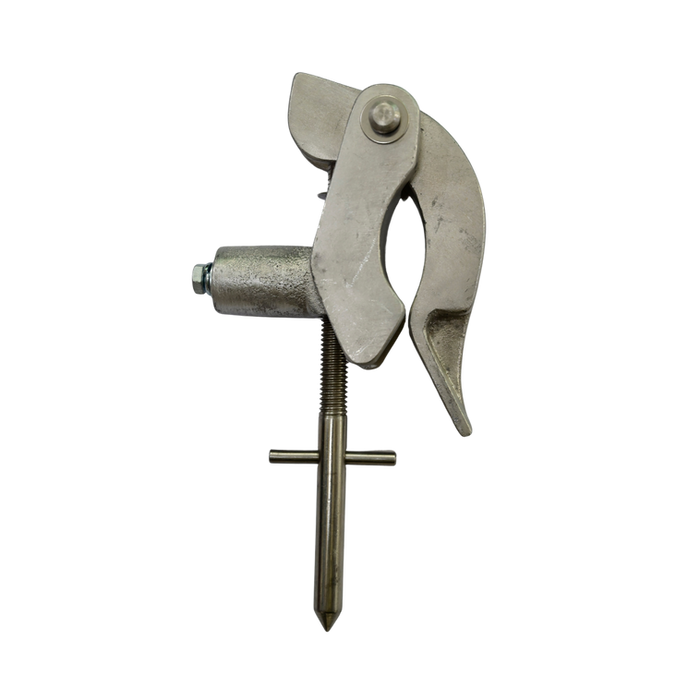

• Line End Clamps

• Operating Sockets for Fixing & Removing Line End Clamps

• Earth End Clamps

• Extension handles to extend the length

• Special Waterproof carrying cases

SPECIAL GROUNDING CABLES AVAILABLE IN FOLLOWING TYPES

• Flexible Copper in Transparent, Bright Orange or Yellow/Green Sheath

• Flexible Aluminium in Transparent, Bright Orange or Yellow/Green Sheath

• The grounding cables are Pressure lugged at either ends using a hydraulic machine.
